Single SZLH420(10tph) poultry feed production line

Poultry & Livestock Feed, generally referred to the food of farmed poultry and livestock animals. It is a kind of conventional feed in the feed classification. he feed classification.


Jiangsu Liangyou Zhengda Co., Ltd is specialized in manufacturing feed machinery and engineering, we can offer customer complete machine solutions for livestock feed(pig and others) , poultry feed(chicken, duck, goose and others), ruminant feed(cattle, sheep and others), normal aqua feed(four major Chinese carps), special aqua feed(shrimp, crab and others),  extruding aqua feed(floating and sinking fish feed, shrimp and others), premix feed(including various additives), pet food(cat food, dog food and others), we can meet customers' kinds of needs.

Now we take the case of Single SZLH420 poultry feed production line, make introduction based on process diagram and each process as follows:



Single SZLH420(10tph) poultry feed production line



Raw Materials:

The common raw materials are mainly consist of corn, wheat, barely, oats, sorghum, soyabean, soyabean meal, fish meal, amino acids, miscellaneous meal, whey powder, oil, meat and bone meal, grains, feed additives etc. more than ten varieties of raw materials.

Flow process introduction

The features of poultry & livestock feed is that the crush fineness is moderate (the hole diameter of screen is 2-4mm), the curing degree is moderate (the pellet mill use double-layer conditioner), the diameter size of finish pellets is large (about 2.5-4mm). The capacity for SZLH420 livestock and poultry feed is designed to be 10tph, using one grinding process, double scale automatic dosing process, one mixing process, one pelleting process and one bagging process. The total power of this line is about 390kw, the working land size is about 16*11*26m, and matching 1ton boiler. The whole line has compact design, reasonable structure and meets the requirement of environmental protection. It can be customized according to customer’s requirements.

Technological process chart:

RM Receiving & Precleaning System—Grinding System—Dosing & Mixing System—Pelleting System—Bagging System—Auxiliary System



Technological characteristics and introductions:

RM receiving and cleaning process:

In this process, the clean system for granule receiving and cleaning is separated from powder receiving and cleaning, dust collection are individual which is with the better effects.

cleaner: granule precleaner SCY80, output 20-30t/h, powder cleaner SQLZ60×50×100, output 10-15t/h.

Grinding process:

1set of hammer mill is adopt in this process, 3 grindings bins are equipped to cross crush different raw material; The impurities could be removed from raw material by magnetic separation equipment before grinding bins to ensure the safe running of hammer mill.

Grinding equipment: hammer mill SFSP668×800, 110KW, output 10-15t/h

Single SZLH420(10tph) poultry feed production line

Batching and mixing process:

in this process, we use 15pcs batching bins, two batching scale work at same time which is controlled by FDSP developed independently batching program, achieve accurate quick and slow feeding, quick batching and with high accuracy.

Weighing equipment: batching scale PCS10 /PCS05, weighing accuracy: dynamic≤3‰, static≤1‰.

Single SZLH420(10tph) poultry feed production line

Mixing equipment: mixer SHSJ2, (18.5KW,1000kg/batch), designed output 10-15t/h/set,  homogeneity CV≤5%.

Single SZLH420(10tph) poultry feed production line

Granulation process: one set double conditioner pellet mill is used in this process. Two pellet bins are equipped for the pellet mill. After granulation, the pellets enter into the cooler, bucket elevator and then go to screening by rotary screener. The finished products go to the packing bins, others go back to the pellet mill other received by bags.

Granulation equipment: :SZLH420, 110KW,output 10-12T/H.

Single SZLH420(10tph) poultry feed production line

Cooling equipment:SKLN6,output 10-15T/H. Crumbler SSLG20x140(11+1.1KW), output 6-10T/H

Single SZLH420(10tph) poultry feed production line

Packing process:

there are 2 FP bins in this process, 1 of them only used for pellet finished products storage, the other can store both mesh feed and pellet feed. There is special anti-grading device for mesh feed bins. The pellet feed and mesh feed will be weighed and packed finally by packing scale.

Packing equipment: belt packing scale(both for mesh feed and pellet feed), weighing rage 20-50kg/bag, 6-8bags /min.

Single SZLH420(10tph) poultry feed production line

Auxiliary process:

dust collection system can improve the work condition, the oil adding system is usually seen in the mixer adding system which can improve the feed palatability.



The process can be optimized according to different customer needs:

1. Single point dust collection mode is used in the plan which means pulse filter is equipped for every rotary distributor(mesh) and granule cleaner with good effect. Single point dust collection is kind of humanized design of our company, to provide a better working environment, but the cost increases, customers can consider whether it is needed in actual situation;

2. The quantity of bins can be adjusted to achieve the beast use ratio and effectively control the production cost based on factors such as customers' formula, characteristics of raw materials.

3. oil post-coating system can be added in poultry finished feed pellets process to improve the pellet quality.

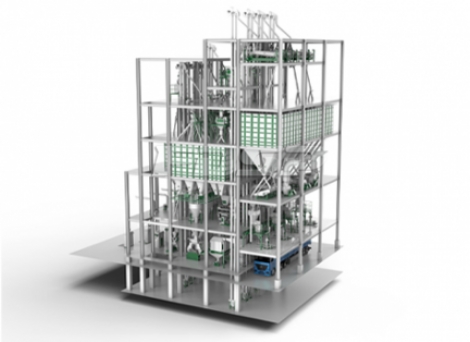

3D
