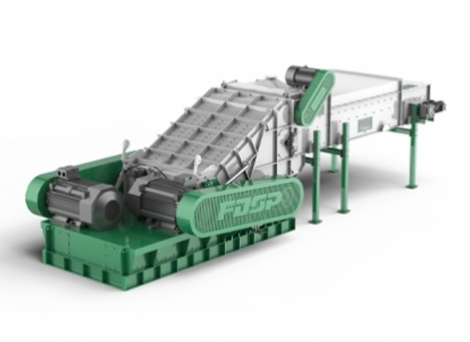

MFSP Series Hammer Mill

MFSP series hammer mill is suitable for a variety of wood and straw raw materials, such as: small wood chips, shavings, small bamboo chips, coconut shells, peanut shells, etc. ​


Features:

■ Adopting steel plate welding structure, the hammer mill rotor and the motor are mounted on the same base, and the serpentine spring coupling is directly connected to the transmission, and the transmission efficiency is high;

■ The base is welded with thick steel plate and reduces the center of gravity of the spindle to effectively improve the vibration phenomenon;

■ The rotor is dynamically balanced to make the rotor work smoothly and can work in forward and reverse directions to extend the service life of the wearing part;

■ The operation door has a safety interlock to ensure that the motor cannot be started when the operation door is opened, ensuring safety;

■ Replace the bearing with a larger load. Effectively improve the temperature rise of the bearing. Effectively extend bearing life;

■ Quick-open full-open mobile access door; (national patent)





MFSP Series Hammer Mill

MFSP Series Hammer Mill

Model  Parameter   MFSP 68X60 MFSP 68X80  MFSP 68X100 MFSP 68X120
Rotor diameter (mm) 680 680 680 680
Speed of main shaft(rpm) 2970 2970 2970 2970
Linear speed of   hammer (m/s) 108 108 108 108
Grinding chamber   width(mm) 600 800 1000 1200
Power(KW) 45 55 75 90 110 132 160 200





Equipment configuration

Shell material:-10/Q235

Hammer frame plate:-10/Q235

Hammer slice:Welded carbide hammer head

Bearing:SKF or FAG
