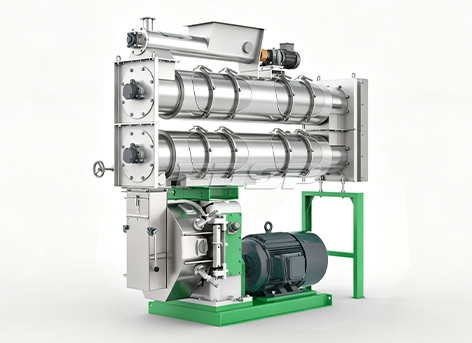

SZLH420 high grade ring die pellet mill is mainly used for medium sized feed mills producing kinds of granule feed which can reduce the cost. It is suitable for chicken, duck, goose, pig, cattle, sheep, fish, shrimp, crab breeding and etc.
This pellet mill is more suitable for granule feed production of medium-sized feed mills.
Feed Pellet Machine SZLH420b2 Ordinary aquaculture feed pelletizer
Capacity | 6-12 |
Main power KW | 90/110 |
Power of screw feeder KW | 1.5(variable frequency) |
Power of conditioner KW | 5.5 |
Rotation speed of screw feeder rpm | 12-120 |
Conditioner shaft rotation speed rpm | 250 |
Ring die inner diameter mm | 420 |
Ring die working width mm | 120 |
Ring die linear velocity m/s | 6.24 |
Ring die material:4Cr13
Door cover of pelleting chamber:-5/SUS304
Feeding chute: -3/SUS304
Gearbox casing:HT250
Gear:42CrMo
Pinion shaft:20CrMnMo
Main shaft:40Cr
Empty shaft:ZG45
