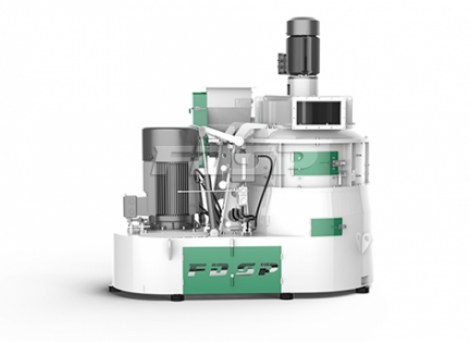

Grinding Machine SFSP668 Series Tear Circle Hammer Mill Machine

It is used by large and medium livestock and poultry feed and aqua feed enterprises to grind raw materials; it is also suitable for crushing in the pharmaceutical industry. It can grind various granular feed ingredients such as corn, sorghum, wheat, beans, broken cakes and other materials. This hammer mill is more suitable for fine grinding of raw materials.

Features:

■ As a derivative series of water drop hammer mill, the efficiency is significantly improved compared with the ordinary hammer mill, and it is an alternative model of the ordinary hammer mill;

■ The base is welded with thick steel plate and reduces the center of gravity of the spindle to effectively improve the vibration phenomenon;

■ The rotor is dynamically balanced and can work in forward and reverse directions; it effectively improving the utilization rate of the hammer beater and the screen;

■ Increases the thickness of the wallboard and uses a more wear-resistant material in the wearable parts for the crushing chamber. Effectively extend the life of the equipment;

■ Replace the bearing with a larger load. Effectively improve the temperature rise of the bearing. Effectively extend bearing life;

■ Quick-open full-open mobile inspection door; (national patent)

■ Quick replace screen structure; (national patent)






Grinding Machine SFSP668 Series Tear Circle Hammer Mill



SFSP668 Series Tear Circle Hammer Mill





Grinding Machine SFSP668 Series Tear Circle Hammer Mill





Model

           Parameter

Tear circle type (single chamber)SFSP 668X400 Tear circle type  (single chamber)SFSP 668X600 Tear circle type  (double chamber)SFSP 668X800 Tear circle type  (double chamber)SFSP 668X1000 Tear circle type  (double chamber)SFSP 668X1200
Rotor diameter mm 660 660 660 660 660
Rotating speed of mainshaft rpm 2950 2950 2950 2950 2950
Linear speed of hammer beater m/s 101 101 101 101 101
Crushing chamber width mm 400 600 800 1000 1200
Power kW 37 45 55 75 90 110 132 160 200/220/250

SFSP668 Series Hammer Mill Sample Drawing

SFSP668 Series Tear Circle Hammer Mill

Shell: -10/Q235

Hammer frame plate: -10/Q235

Hammer beater: -5/Q235
