It is mainly used for the cleaning of impurities, powders, light impurities, etc. of some grain grains;
Features:
■ Cleanable materials: wheat, rice;
■ Large output, high efficiency, low power consumption, good cleaning effect, stable operation and low noise;
■ Adopt the overall frame type to effectively solve the problem of cracking and welding of the sieve body;
■ Adjustable screen inclination within 0-12°;
■ Three-layer screen vibrating screen can be customized by using upper and lower double-layer screens;
■ Convenient and fast screen replacement;
■ Be used with vertical suction duct or self-circulating air system with better effect ;

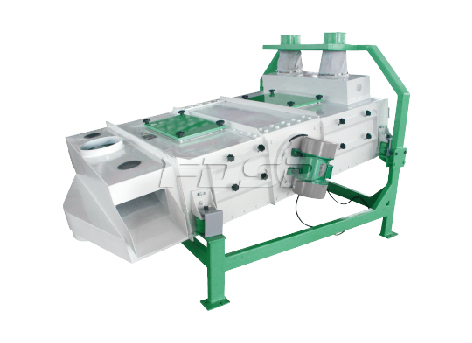

Pellets Screener TQLZ Series Vibrating Screener
Models Parameters | TQLZ100/150 | TQLZ125/200 | TQLZ150/200 | TQLZ180/200 | TQLZ200/200 |
Capacity(t/h) | 10-20 | 20-30 | 30-40 | 40-60 | 60-80 |
Sieve Size(mm) | 990×1496 | 1240×1996 | 1490x1996 | 1790x1996 | 1990x1996 |
Amplitude(mm) | 5-5.5 | 5-5.5 | 5-5.5 | 5-5.5 | 5-5.5 |
Circulating Air Selector | TFXH100 | TFXH125 | TFXH150 | TFXH180 | TFXH200 |
Vertical Suction Duct | TFDZ100 | TFDZ125 | TFDZ150 | TFDZ180 | TFDZ200 |
Characteristic:
Power: 2x0.25kw/2x0.55kw/2x1.1kw
Sieve angle: 9 ° ~ 15 °
Sieve plate configuration: sieve plate (screen) aperture is designed according to material type
Housing material: Q235A (cold plate)
