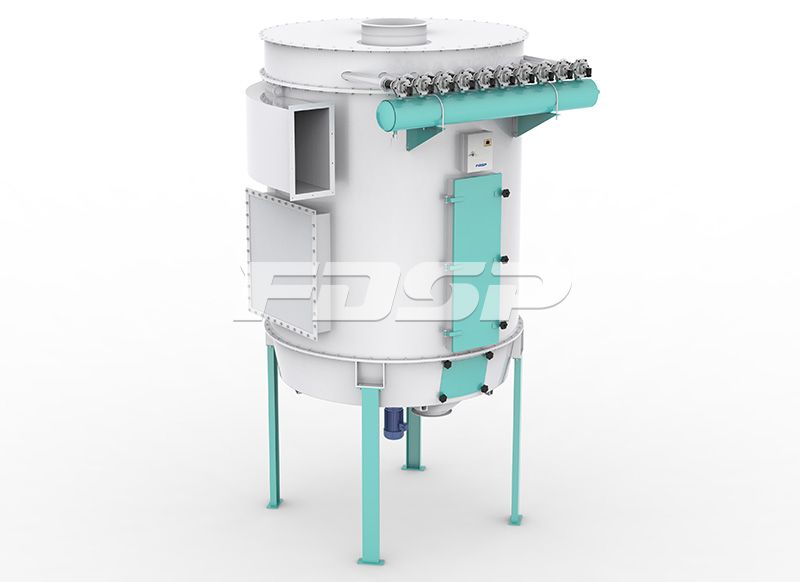

High Quality TBLMD Series Drum Pulse Filter

It is suitable for dust removal and dust recovery in grain, food, feed, light industry, mining, building materials, woodworking and other industries.

Description features:

 The cylinder body increases the stiffness and strength of the body;

 Tangential centrifugal feeding is used to reduce equipment resistance and reduce filter bag load;

 This series of products have the feature of low resistance, high dust removal efficiency, convenient operation, simple maintenance, low supporting air pressure, low noise, long life, and small size;

 The bottom of the dust remover adopts the way of scraping, which reduces the height of the equipment and improves the effect of dust discharge.

 Large disposal air volume, small floor area and low equipment noise;

■ Pressure gauge and explosion discharge port can be set according to customer needs.



High Quality TBLMD Series Drum Pulse Filter



Model

φ120×2000

Dust collector resistance

Pulse injection pressure

velocity of filtering

Fitlering area

Disposal air volume

TBLMD26

19.5

3510~4680

No more than1470Pa

4×105Pa

2-4m/min

TBLMD39

29.2

5256~7008

TBLMD52

39

7020~9360

TBLMD78

58.5

10530~14040

TBLMD104

78

14040~18720



Layout of equipment :

Filter bag: needle felt filter bag

Shell: - 3 / Q235

Solenoid valve: large caliber brand solenoid valve

Solenoid valve voltage: DC24V

Solenoid valve current: 0.8-1a

Ambient temperature: -20 ~ 50℃
